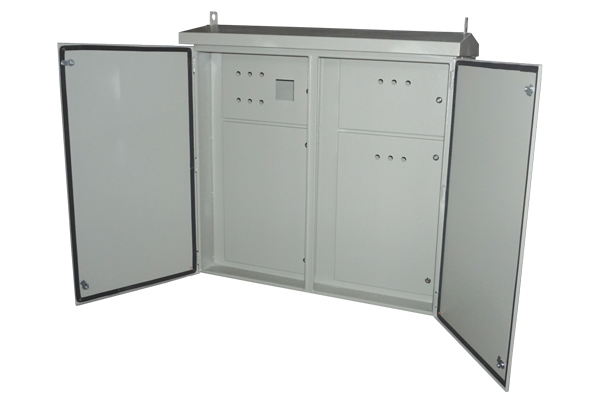

Control Panel Enclosure (Double door)

Control Panel Enclosure (Double Door) Control Panel Enclosure (Double Door)

Applications

Junction Box Enclosure / Control Panel Enclosure / Machine Control Panel / Power Distribution Panel Enclosure / AMF Panel Enclosure / PLC Panel / MCC Panel / ACDB Panel / Electronic Housing / MCB Housing etc.

Salient Features

  • Enclosure can be customized as per customer drawing.
  • Mounting plate can be supplied in GI or orange (RAL-2000) shade.
  • Cable entry holes, cut out can be provided as per customer detailing.
  • Sufficient number of cable tray support/ Door cable supports can provided as per drawing.
  • It comes with removable gland plate for cable entry/exit holes.
  • Powder coating with 7 tank process will be done to required shade. RAL7032/RAL 7035/RAL 7012 etc.
  • Multipoint Locking for sizes above 1000mm.
  • Can be designed for outdoor/hygienic application.
  • Ingress Protection: IP 55
Material: MSCRCA / GI / SS 304 / SS 316 / SS 316L
Thickness: 1.5 mm / 2 mm / 3 mm

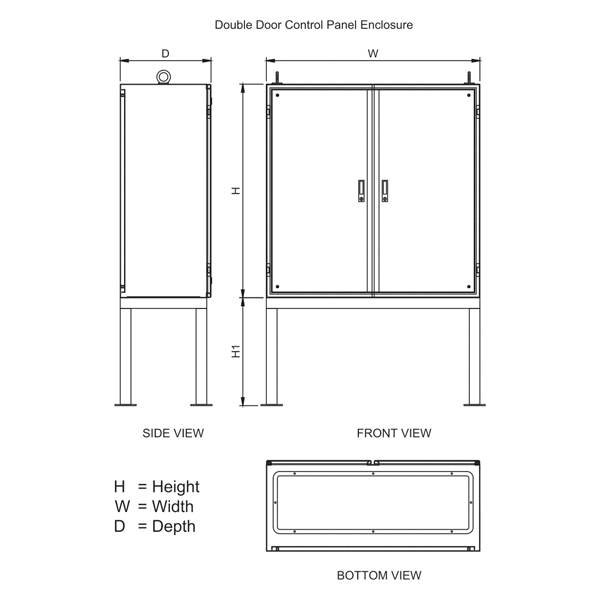

Sizes: Height : 800 mm to 1500 mm
Width : 800 mm to 1500 mm
Depth : 300 mm to 500 mm
Base : AS per Requirement, Wall Mount / Base Frame
