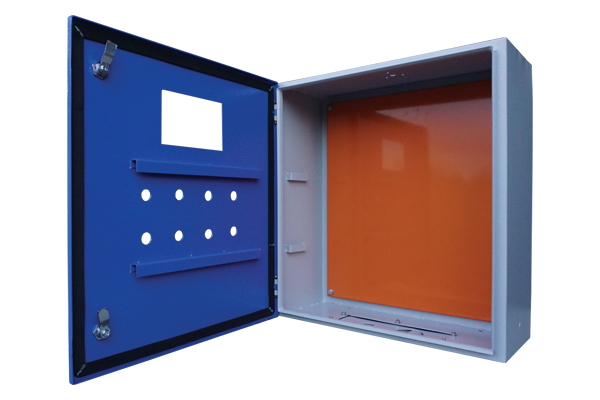

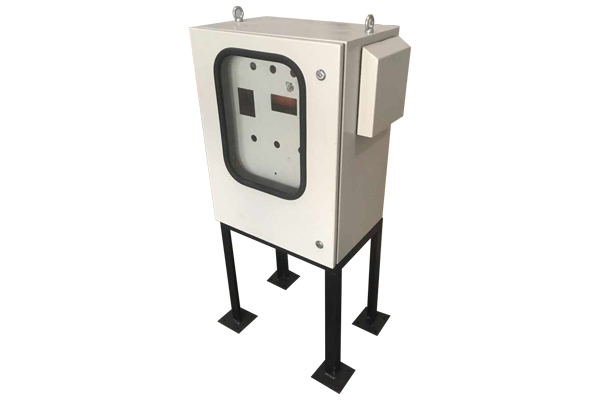

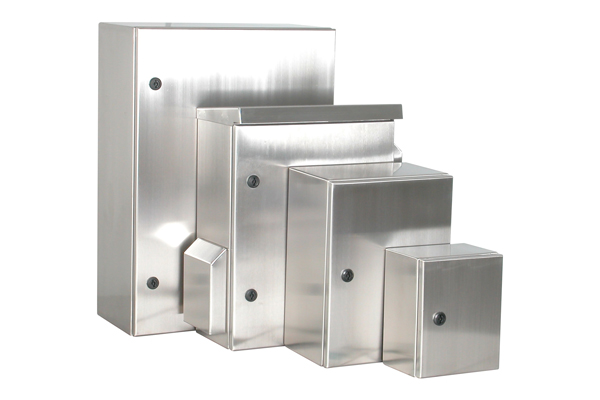

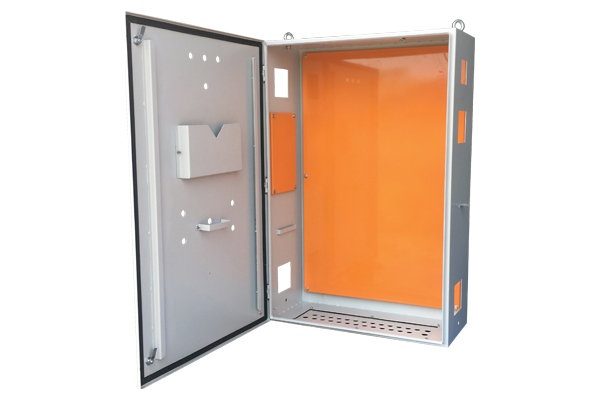

Junction Box Enclosure/ Control Panel Enclosure / Machine Control Panel/ Power Distribution Panel Enclosure/ AMF panel enclosure / CCTV housing/ Electronic Housing/ MCB Housing etc.
Salient Features
Enclosure can be customized as per customer drawing.
It comes with GI/Orange mounting plate or din rail attachments.
Cable entry holes, cut out can be provided as per customer detailing.
Separate removable gland plate can be provided for larger size.
Sufficient number of cable tray support/ Door cable supports can provided as per drawing.
Powder coating with 7 tank process will be done to required shade. RAL7032/RAL 7035/RAL 7012 etc.
Multipoint Locking for sizes above 1000mm.
Can be designed for outdoor/hygienic application.
Ingress Protection: IP 55
Material: MSCRCA / GI / SS 304 / SS 316 / SS 316L
Thickness: 1.5 mm / 2 mm / 3 mm

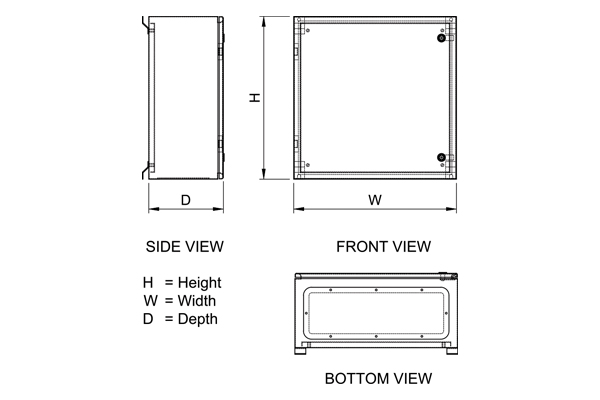

Sizes:
Height : 200 mm to 1250 mm
Width : 200 mm to 800 mm
Depth : 150 mm to 500 mm
Base : AS per Requirement, Wall Mount / Base Frame
